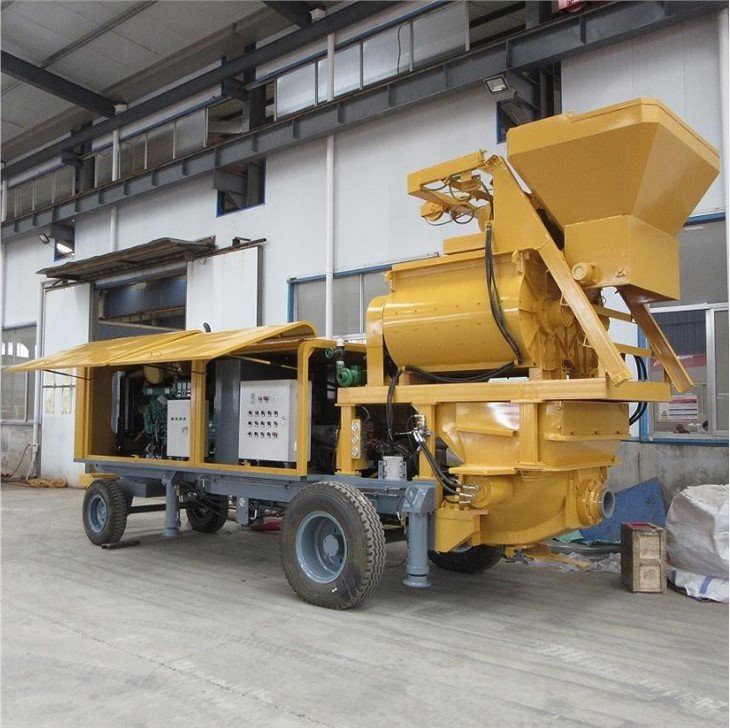

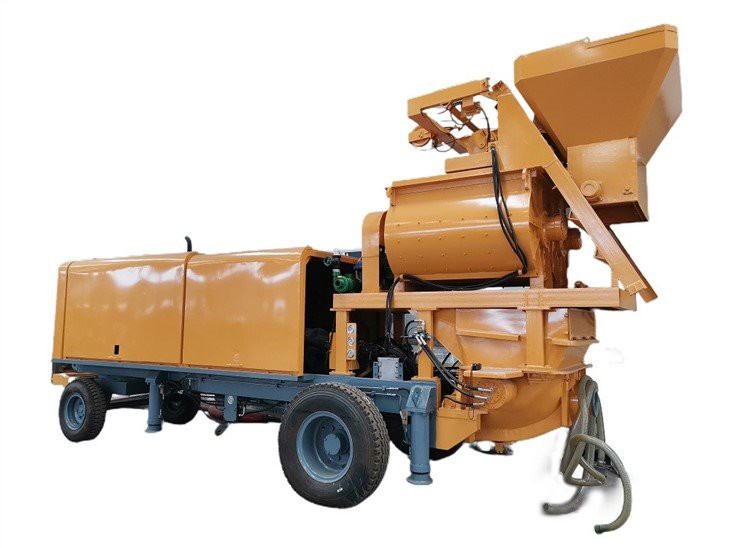

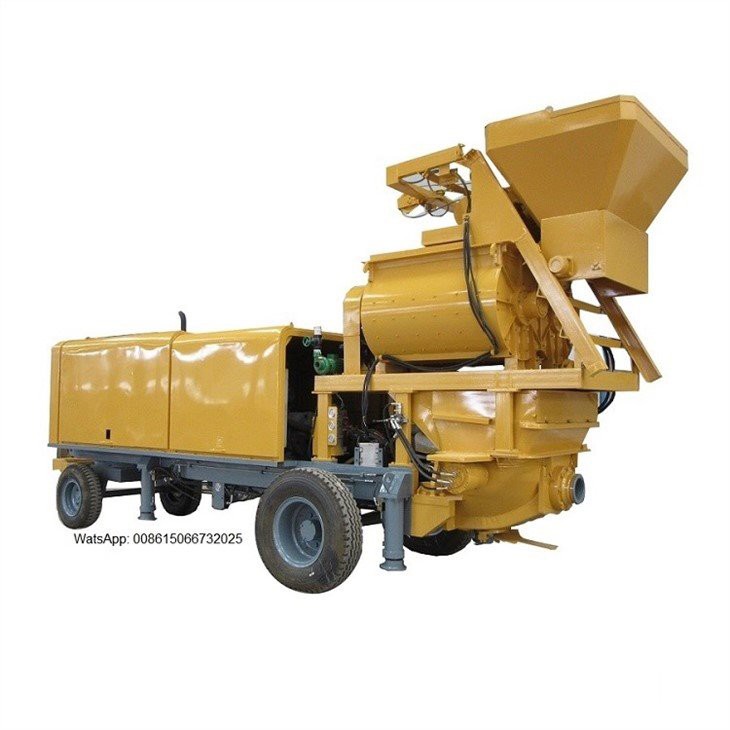

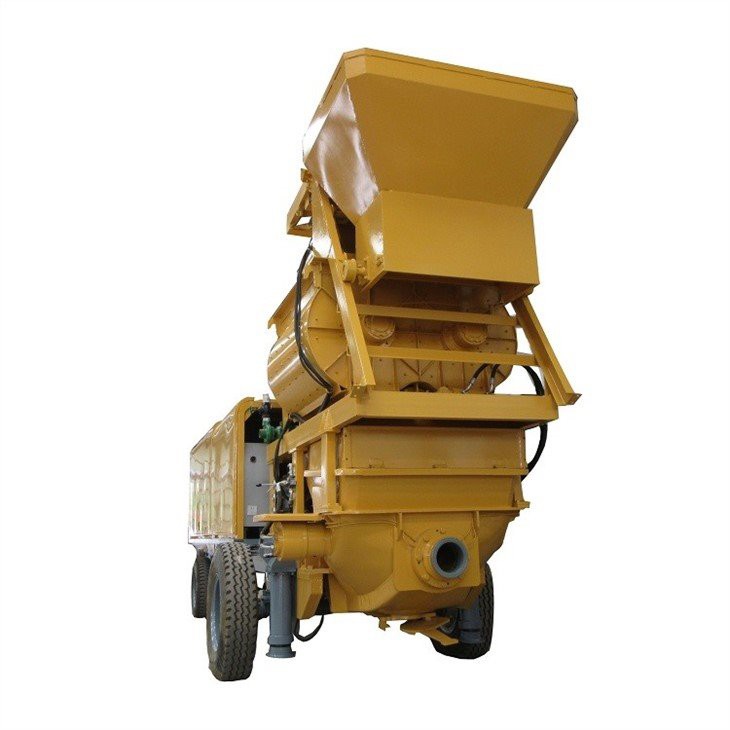

Forced Mixer Concrete Pump Trailer Mounted

Introduction The Concrete Pump Trailer Mounted with Forced Mixer is primarily made up of three components. It finds extensive application in construction projects. The generator diesel engine serves as the powerhouse, providing the required energy. Opting for the trailer chassis means that the...

Send Inquiry Chat Now

Description

Introduction

The Concrete Pump Trailer Mounted with Forced Mixer is primarily made up of three components. It finds extensive application in construction projects. The generator diesel engine serves as the powerhouse, providing the required energy. Opting for the trailer chassis means that the entire concrete mixer pump operates with only one diesel generator, although it necessitates transportation via a truck. We take pride in offering our customers cost-effective products that boast exceptional quality, making them highly sought-after.

Feature

The high working efficiency of the Forced Mixer Concrete Pump Trailer Mounted is attributed to its twin-shaft mixer. Additionally, our trailer chassis is designed with a top-notch steering system, ensuring high quality. Moreover, we have established a fast and efficient way to cater to the transmission needs of multiple sites. Lastly, the hydraulic support legs play a crucial role in keeping the truck firmly grounded during operation.

Parameter

Truck mounted Concrete pump	Unit	TJBHBTS40
Max. Theoretical Concrete Output	m³/h	40
Max. Concrete Pumping Pressure	Mpa	13
Distribution valve	S Valve
Conveying cylinder bore/stroke	mm	180*1000
Mixing form	Drum way
Feeding capacity	L	750
Discharge capacity	L	450
The maximum feasible distance over which a material can be transported through a system can be described as the maximum theoretical conveying distance. This distance can be broken down into horizontal and vertical components, depending on the orientation of the pipeline or conveyor system. It is important to take into account both the horizontal and vertical components of the maximum theoretical conveying distance when designing a material handling system, as this will affect the overall efficiency and performance of the system. The most appropriate design will be dependent on the weight and flow characteristics of the material being transported, as well as the distance and speed required for the system to function effectively.	m	500/ 150
Hopper Capacity/ Filling Height	m³/mm	0.4/ 1400
Maximum aggregate size	mm	≦40
Concrete slump range	mm	100-230
Pumping diesel engine	Brand	YUCHAI
Power	(kw)	78
Main oil pupmp	KAWASAKI
Oil tank capacity	L	300
Cleaning mode	High pressure washing
Dimension (Transport)	mm	753021902500
Chassis	Foton
Diesel engine	kw	74
Engine brand	Kw	Cummins
Tires	piece	6
Overall dimension	mm	5990×2050×2500
Trailer Chassis	Customized
Truck Chassis:
Travel speed	Km/h	80
Wheelbase(front/rear)	mm	1525/1586
Axle distance	mm	3300
Axle quantity	piece	2
Total Weight (including oil)	kg	7500

Application:

Suitable for a variety of construction work, especially your building work required urgently, it can reach the building site on time, supply concrete promptly. Your workers ensure that there is abundant cement, sand, aggregate, enough water.

Delivery process:

How did the double axis mixer with pump work?

That is better way if you had a loader, the loader feed sand, aggregate into the lifting hopper, the workers will feed cement almost at the same time, until the lifting hopper full, you start the “Up” button, it is controlled by the PLC box, the lifting hopper will be lifted on the top, unloaded material automatically into the Horizontal mixing chamber, meanwhile, the water supplied automatically, after mixing the compound, concrete dropped to the pumping hopper, the concrete pump will pumping all the material from the output, along the connected pipeline reach your construction area.
